The Suburban Dynaline vs Islandaire EZ GS
If you've been on Islandaire's website recently you may have noticed a "side by side" comparison of their EZ GS against Suburban's Dynaline. Unfortunately, their comparison is not a fair one and includes several blatant errors and mistakes. So let's set the record straight about the Suburban Dynaline:
Heat Exchanger: Tubular, aluminized steel. In the 14 years of DL3 Series production, Suburban Hvac Parts has never had to replace a heat exchanger, not one time.
CO Detector: The Dynaline is available with a built-in CO Detector. As an onboard CO Detector is not required nationwide, we give our customers the option of including this or not.
Construction: There is no true definition of "commercial grade" for PTAC unit construction. But according to various other manufacturer's claims, our 18 and 20 gauge sheet metal would be considered "commercial grade".
Controls: Our 1 control board runs both the heat and cooling cycles. This allows end users who stock parts to spend less on their inventories and allows for easy self-diagnosis of unit issues.
Combustion Operation: Our negative draw-through combustion is the SAFEST design available. The systems allows for NO penetration of exhaust gases back into the room, as no room air is used for combustion. The Dynaline is also wind rated and has been installed in high-rises around the country for decades.
Front Panel: Our front panel includes rounded corners and is shallower than Islandaire's EZ GS, allowing for less protrusion into the room.
Wall Sleeve: Our wall sleeves are available fully assembled AND in a fold out version. Not forcing our end users to take fully assembled wall sleeves saves them dramatically on shipping costs and makes for far easier storage at the jobsite.
Indoor Fans: Our tangential fan has been providing excellent air flow through our available duct kits for almost 15 years.
Condensor Fan: Our design eliminated a slinger wheel by recessing our condenser coil. This eliminates the need for another moving part that creates noise, the slinger wheel, in the unit.
Combustion Intake: Located above the draining weep holes on the rear of the unit, water would need to run uphill and against the required ¼" slope of the units' pan.
Please contact Suburban Hvac Parts today at (718) 577-7875 for more information about the Suburban Dynaline - including pricing, availability, information for architects and engineers, and more.
Suburban Manufacturing Units Service
Suburban's Dynaline Parts NYC. provides home and business owners with reliable PTAC installation services. This includes Suburban HVAC units. We can install, repair and maintain many different types of Suburban HVAC models. Our service area extends to clients across the New York area, most particularly Manhattan, Queens and western Long Island. We provide the installation of a wide range of high-quality PTAC units, including Suburban Manufacturing units. We pride ourselves on our exceptional customer service at unbeatable prices. So please, call us today for more information about our PTAC services: (718) 577-7875.
Suburban HVAC Manufacturing
Suburban Manufacturing is an industry-leading company and produces space-saving, horizontally vented gas heating systems, water heaters and furnace motors, among other products. As per the company's website, their goal is to manufacture the most durable and efficient products available. They became part of the Suburban's Dynaline Parts NYC family in 1997, which allowed them a larger distribution area. There are five manufacturing locations and five sales and distribution locations that allow Suburban to sell their products worldwide.
At Suburban's Dynaline Parts NYC, we are here to sell and install these top-quality Suburban units at your home or business. We are proud to be there for you every step of the way, ensuring that each step is completed in a professional manner. From installations to repairs, we can handle anything that comes our way.
Suburban Repair & Service Estimates
Suburban's Dynaline Parts NYC has years of experience in the PTAC unit field and provides trusted and reliable PTAC installations. Among our many PTAC units we install and service are Suburban HVAC units. If you are interested in this sort of unit for your business and require service or repair, please contact us today. The number to call is (718) 577-7875. We will happily answer any questions you may have regarding our services. With your phone call, you will receive a free consultation and estimate for our work regarding your Suburban PTAC unit. We look forward to hearing from you.
PTAC Sales in Long Island PTAC Installation in Manhattan
PTAC Installation in Queens | PTAC Repair in Queens | PTAC Sales in Queens PTAC Installation in Brooklyn | PTAC Repair in Brooklyn | PTAC Sales in Brooklyn PTAC Installation in Long Island | PTAC Repair in Long Island | PTAC Sales in Long Island PTAC Installation in Manhattan | PTAC Repair in Manhattan | PTAC Sales in Manhattan PTAC Installation in Bronx | PTAC Repair in Bronx | PTAC Sales in Bronx PTAC Installation in New Jersey | PTAC Repair in New Jersey | PTAC Sales in New Jersey PTAC Air Conditioner Servicing Areas New York Queens Brooklyn Manhattan Bronx
PTAC Air Conditioner Repair PTAC Air Conditioner Service PTAC Air Conditioner Cleaning PTAC Air Conditioner Tune up and Steam cleaning PTAC Air Conditioner Installation PTAC Mounted Installation PTAC Casement Window AC Installation Portable Air Conditioner Installation PTAC Units Installation Fan Coil Units installation Mini Ductless Split Air Conditioner Installation Air Conditioning Winter Storage Air Duct Cleaning New York Indoor Air Quality Treatment Indoor Air Monitoring Thru the wall ac sleeve installation PTAC wall ac sleeve installation
Industry Proven Design with Installer and User Friendly Updates...
now available in High Efficiency
To continue their nearly 30 year tradition of providing year-round comfort in a fully self-contained heating and cooling system, Suburban Manufacturing offers the DynaPack. This vertical packaged air conditioner features electric cooling comfort along with high-efficiency gas heat. Available with 1 to 3 tons of cooling and 36 to 60 MBTU of gas heat, and standard or high efficiency, they are the perfect option for multiple room applications.
Developed with the multi-family market in mind, the DynaPack incorporates features that benefit not only owners and contractors, but tenants as well. Owners will appreciate the DynaPack's reliability and economical operation. Contractors will notice the ease of install and solid construction. Tenants will be happy to have a unit that offers lower utility costs and is extremely quiet operating. Contact us today to find out more about the features that set the Suburban DynaPack apart from the competition.
The Suburban DynaPack is available in High Efficiency and Standard Efficiency versions in multiple heat and cooling combinations, all using economical gas heat:
H Series Models | BTU's Heating | AFUE | BTU's Cooling | SEER | EER |
DYPA12AC1A039H |
39000/36000 |
92% |
12000 |
11 |
10.2 |
DYPA18AC1A039H |
39000/36000 |
92% |
17500 |
12 |
10.6 |
DYPA24AC1A039H |
39000/36000 |
92% |
25200 |
12.1 |
10.6 |
DYPA30AC1A039H |
39000/36000 |
92% |
30200 |
12.35 |
10.7 |
DYPA36AC1A039H |
39000/36000 |
92% |
34800 |
11.5 |
10 |
S Series Models | BTU's Heating | AFUE | BTU's Cooling | SEER | EER |
DYPA12AC1A036 |
35500/28400 |
80% |
12000 |
11 |
10.2 |
DYPA12AC1A048 |
47500/38000 |
80% |
12000 |
11 |
10.2 |
DYPA18AC1A036 |
35000/28400 |
80% |
17500 |
12 |
10.6 |
DYPA18AC1A048 |
47400/38000 |
80% |
17500 |
12 |
10.6 |
DYPA18AC1A060 |
59000/47200 |
80% |
17500 |
12 |
10.6 |
DYPA24AC1A036 |
35500/28400 |
80% |
25200 |
12.1 |
10.6 |
DYPA24AC1A048 |
47500/38000 |
80% |
25200 |
12.1 |
10.6 |
DYPA24AC1A060 |
59000/47200 |
80% |
25200 |
12.1 |
10.6 |
DYPA30AC1A036 |
35000/28400 |
80% |
30200 |
12.35 |
10.7 |
DYPA30AC1A048 |
47500/38000 |
80% |
30200 |
12.35 |
10.7 |
DYPA30AC1A060 |
59000/47200 |
80% |
30200 |
12.35 |
10.7 |
DYPA36AC1A036 |
35000/28400 |
80% |
34800 |
11.5 |
10 |
DYPA36AC1A048 |
47500/38000 |
80% |
34800 |
11.5 |
10 |
DYPA36AC1A060 |
59000/47200 |
80% |
34800 |
11.5 |
10 |
Please contact Suburban's Dynaline Parts NYC today at (718) 577-7875 for pricing, availability, and additional features and benefits of the Suburban DynaPack.
Superior design, build quality, performance, and
dependability with a wide variety of PTAC options
Applied Comfort Products delivers engineered, through the wall and zoned heating and cooling solutions for your commercial, industrial and institutional HVAC requirements. Their broad model range of Packaged Terminal Air Conditioners (PTAC's) are developed and manufactured from original OEM chassis specifications. Models are available in Electric heating/cooling, Heat Pump, or Hydronic formats.
Applied Comfort Products PTAC's are available to fit a huge range of different unit types and wall sleeve openings. They offer units ranging in size from 16"x26" to 42"x16", and everything in between. With replacement options available for Islandaire, McQuay, Climate Master and more, we can supply units for almost any replacement PTAC application. And with a 2 year parts and 6 year compressor warranty, Applied Comfort Products sets themselves apart as the premier replacement PTAC manufacturer.
Here are just a few of the units that we can replace
with a high quality Applied Comfort Products unit:
Climate Master PTH, PTA | Climate Master 702, 703, 704 | McQuay PDAA, PDHA |
McQuay K Series | Islandaire EZ16 | Islandaire EZ45 |
Islandaire HQ | Islandaire CM | Islandaire RM |
American Air Filter Type 16 |
This is only a small sampling of the units we can replace. Call Suburban's Dynaline Parts NYC today at (718) 577-7875 with a model and serial number from one of your current units, and we can match you up with the correct Applied Comfort Products unit.

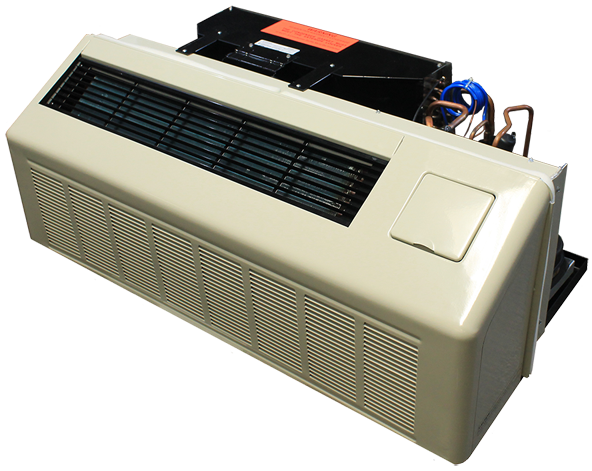

Dynaline 3
Economical gas heat and high efficiency electric air conditioning for year round savings and comfort.
Suburban developed the first gas-fired package terminal air conditioner (PTAC) in 1985 called Dynaline. Now, in its 3rd generation design, Suburban is a leading supplier to the senior housing industry as well as other small commercial markets.
The standard 42x16" wall sleeve makes Dynaline 3 the right choice for new construction or direct replacement for other brands such as Island Aire. Gas (Natural or LP) connections can be inside or outside the room.
Dynaline 3 Specifications
Model |
DL3-1622 |
DL3-1220 |
DL3-0912 |
DL3-0712 |
Rated Heating Input (BTU/h) |
20,000 |
18,000 |
12,000 |
12,000 |
Rated Heating Output (BTU/h) |
16,000 |
14,580 |
9,840 |
9,840 |
Thermal Efficiency (TE) |
82% |
82% |
82% |
82% |
Rated Cooling Capacity (BTU/h) |
15,000 |
11,500 |
9,500 |
7,600 |
Sensible/Latent Cooling |
65/35 |
65/35 |
69/31 |
65/35 |
EER |
9.5 |
10.40 |
11.2 |
11.60 |
Refrigerant Type (HCFC) |
R410A |
R410A |
R410A |
R410A |
Rated Load Amps |
6.6 |
4.9 |
3.9 |
2.9 |
Locked Rotor Amps |
32 |
25 |
22 |
15 |
Gas (specify) |
Natural or LP |
Ignition System: Solid-State |
Hot Surface |
Filter Type |
Electrostatic/Washable Media |
Economical gas heat and high efficiency electric air conditioning for year round savings and comfort.
DL3-0712
Provides a cooling capacity of 7,600 BTU/h along with 12,000 BTU/h of rated heating input.
DL3-0912
Provides a cooling capacity of 9,500 BTU/h along with 12,000 BTU/h of rated heating input.
DL3-1220
Provides a cooling capacity of 11,500 BTU/h along with 18,000 BTU/h of rated heating input.
DL3-1622
Provides a cooling capacity of 15,000 BTU/h along with 20,000 BTU/h of rated heating input.
Suburban | Dynaline II Parts | Dynaline 3 Parts | PTAC | HVAC
Economical gas heat and high efficiency electric air conditioning for year round savings and comfort.
Suburban developed the first gas-fired package terminal air conditioner (PTAC) in 1985 called Dynaline. Now, in its 3rd generation design, Suburban is a leading supplier to the senior housing industry as well as other small commercial markets.
The standard 42x16" wall sleeve makes Dynaline 3 the right choice for new construction or direct replacement for other brands such as Island Aire. Gas (Natural or LP) connections can be inside or outside the room.
Each unit is individually controlled so comfort levels can be set for each room or zone. The top-mounted controls provide for High and Low speeds in both heating and cooling modes, plus a fan only mode. The Dynaline 3 can be controlled from the unit or from a wall thermostat.
The Dynaline 3 is available in four standard colors, plus stainless steel and in unlimited custom colors.
Dynaline 3 Standard colors:
- Champaign Beige
Mesa Tan -
White -
Gray
Four capacities are available, all operating efficiently and economically utilizing R410A refrigerant.
DL3-0712
Provides a cooling capacity of 7,600 BTU/h along with 12,000 BTU/h of rated heating input.
DL3-0912
Provides a cooling capacity of 9,500 BTU/h along with 12,000 BTU/h of rated heating input.
DL3-1220
Provides a cooling capacity of 11,500 BTU/h along with 18,000 BTU/h of rated heating input.
DL3-1622
Provides a cooling capacity of 15,000 BTU/h along with 20,000 BTU/h of rated heating input.
Suburban Applied Products
Suburban Applied Products (AP) is a manufacturer of self contained heating/cooling systems. Available in a range of capacities, these systems are primarily used for multi-family and multistory applications.
Continuing the Suburban Applied Products tradition of providing year-round comfort in a fully self-contained heating and cooling system, Suburban AP offers models with mechanical cooling and efficient gas heat.
DynaPack units are installed in an interior closet and are ductable for multi-room installations.
The Dynaline is a highly efficient gas-fired PTAC is ideal for senior housing industry as well as other small commercial markets.
All Suburban AP products are designed for ease of installation and year-round trouble-free heating and cooling.
DynaPack
Designed and built to perform with efficient reliability.
To continue the Suburban tradition of providing year-round comfort in a fully self-contained heating and cooling system, Suburban offers DynaPack. This vertical packaged air conditioner features electric cooling comfort along with high-efficiency gas heat.
The DynaPack range of products features from 1 to 2.5 tons cooling and efficient 36 to 60 MBTU gas heat. DynaPack
DynaPack's direct vent design has a built-in condensing unit which offers additional cost savings for new construction design.
Each DynaPack unit can be ducted for multiple room conditioning making it ideal for multi-family applications.
Five cooling capacities are available each with multiple rated heating input, all utilizing R410A Refrigerant.
The Dynapack S Series has a heating efficiency of 80% thermal efficiency.
The Dynapack H Series has a heating efficiency of 91-92% thermal efficiency, depending on specific model.
All cooling efficiencies for both the S and H Series range from 10.0 to 10.7 EER. And, all Dynapack units are tested and rated to AHRI Standard 390 and are classified as “Single Packaged Vertical Unit”.
Ready to get started
Suburban Dynaline
Suburban Dynaline New York
Vertical Packaged Air Conditioner | Gas Heat/Electric Cooling
Designed to Serve Multi-Family Applications
Fully Self-Contained Heating and Cooling System
That Provides Designers and Builders with a Cost Effective Alternative to Condition Multiple Rooms.
Suburban Dynaline, Ideal For Multi-Family Applications
DYNAPACK SPECIFICATIONS
START UP/SYSTEM PERFORMANCE
UNIT START – UP
CAUTION: This furnace is equipped with a direct ignition control.
Do not attempt to manually light the burners.
BEFORE OPERATING, smell all around the appliance area for gas. Be sure to smell next to the floor because gas is heavier than air and will settle on the floor. If you smell gas STOP. Open the windows and doors to clear out any gas. Recheck all gas piping and connections for leaks.
To check the unit operation:
Make sure the gas valve is switched ON. Remove the gas compartment door. Turn the gas valve knob or move the switch to the ON position. Do not use any tools to turn the knob. If you are unable to push in and turn the knob by hand then call a qualified service technician for assistance. Replace the gas compartment door.
Turn on electrical power to the unit.
Switch the room thermostat to heat.
Raise the set point to above the room temperature.
The thermostat will call for heat and the combustion blower will begin to operate.
The combustion blower will operate for 15 to 20 seconds before the ignition controls begin sparking, then the gas valve will open and the burners will light. The burners can be viewed through the sight glass in the door panel.
The room air blower starts 30 seconds after the burners light.
Once the room reaches the set temperature, the burners turn off and the room air blower turns off 90 seconds later.
Switch the room thermostat over to cooling.
Lower the set point to below the room temperature.
After a slight delay the room air blower will begin to run and the compressor will start. NOTE: There will be a 5 minute delay in the compressor starting if the thermostat set point was raised and then lowered again.
Once the room reaches the set temperature, the compressor will turn off and the room air blower will turn off 30 seconds later.
Suburban | Dynaline II Parts | Dynaline 3 Parts | PTAC | HVAC
We do repair and service of all kind of PTAC units in New York City, NY Manhattan, Bronx, Brooklyn, Queens, Staten Island Window air conditioner repair and service in NYC Thru-the wall air conditioner repair and service in NYC PTAC units repair and service in NYC Water source heat pumps repair and service in NYC Portable air conditioner repair and service in NYC Mini ductless split system repair and service in NYC Fan coil units repair and service in NYC
Suburban Dynaline Suburban Dynaline PTAC (Through The Wall Air Conditioner Suburban Dynaline Suburban was the first manufacturer to produce a gas-fired PTAC, and has gone on to develop efficient and economical packaged units. With reliable gas heat and comfortable electric cooling, Suburban HVAC equipment has become a top choice in several industries. If you are in need of a direct replacement for a Suburban Dynaline unit, PTAC REPAIR NYC has you covered.PTAC REPAIR NYC offers a complete selection of direct replacements for Suburban Dynaline PTAC units (through the wall air conditioners):
Suburban Dynaline PTAC Through The Wall Air Conditioners
Subarban Dyline is one of the most widely used PTAC unit in the New York City for the purpose of Heating and Cooling of Residential and small scale
Commercial space. This unit is unique in operations as it uses gas to generate heat and vapor compression system to generate cooling. The design of this
unit is compact which includes cooling system, heating system and unburnt gas exhaust system.
As this unit has multiple systems which is purely mechanical in nature and the quantity of parts is much more than ordinary electric heat or
compressor heat unit Therefore this unit has a long list of spare parts which might needs regular maintenance and replacement for efficient and continuous
working. It is very important to have the unit serviced at regular interval for maximum efficiency.
"Suburban's Dynaline Parts NYC" feels proud to get this opportunity to serve the New York City for maintenance, replacement and installation of Suburban PTAC
units. We offer affordable maintenance services and regular installation/replacement services throughout 5 boroughs (Manhattan, Bronx, Queens, Brooklyn and
Staten Island). Maintenance services includes on call diagnostics visit followed by on site and Garage maintenance of the unit. Onsite maintenance
includes regular cleaning, Part replacement, minor electrical fixes however Garage maintenance includes chemical wash, compressor replacement, exhaust
system replacement or other applicable major replacement.
"Suburban's Dynaline Parts NYC" also provides installation and replacement services which includes perfect fit replacement of various PTAC units with the
standard Suburban Dynaline units. Our replacement services includes prior surveying, measuring sleeve sizes and unit specs followed by engineering specs
comparison and informing the customer with formal price quotes and cut sheets.
"Suburban's Dynaline Parts NYC" Associates has been providing the service of the Suburban Dynaline for many years and we have successfully provided the requested
service to our hundreds of happy customers. We are committed to provide the maintenance/replacement services as well as continuously improve and sustain
the quality of our services which further helps us achieve our ultimate customer satisfaction goals.
